Air Quality Monitor Pm2.5 Pm10

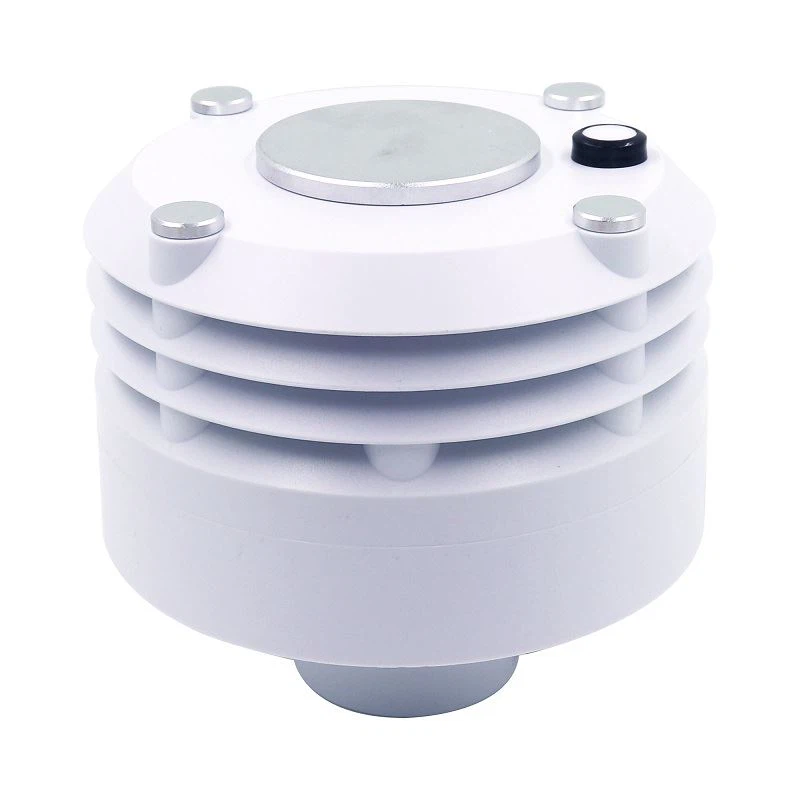

The RY-CPM2516 compact weather sensor realizes five-in-one parameter measurement of atmospheric temperature, humidity, PM2.5, PM10, and Noise, and realizes a better display of the environmental air quality characteristics of scenic spots, parks, etc., and cost It is low and adopts standard RS485 interface, which is convenient for users to develop an online negative oxygen ion monitoring system.

Send Inquiry

Technical Data

Parameter	Range	Resolution	Accuracy
Temperature	-40-60℃	0.01℃	±0.3℃@25℃
Humidity	0-100%RH	0.1%RH	±3%RH
PM2.5	0-1000ug/m³	1ug/m³	10ug±10%@0-500ug/m³
PM10	0-1000ug/m³	1ug/m³	±10%
Noise	Electret capacitance	30-130dB	0.1dB
Illuminance	Photodiode	0-100000Lux	10Lux
Power Supply	DC12-24V
Working Temperature	-40~60 degree
Current	80 - 90mA
Capacity of battery	10AH
Installation method	Sleeve fixing
Equipment material	ASA(No color change for 15 years in outdoor applications)
Protocol	MODBUSRTU
Cable length	3m(customizable)
Ingress Protection	IP64
