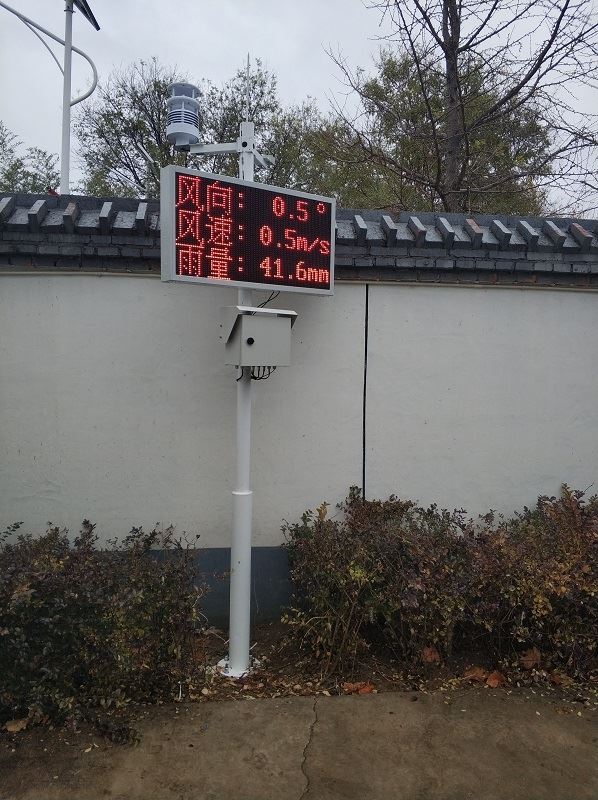

Our Compact Weather Sensors HCD6818E Has Been Installed In Our Client's Farm

Atmospheric temperature

Energy gap method

-40-60℃

0.1℃

±0.3℃（25℃）

Atmospheric humidity

Capacitance method

0-100%RH

0.1%

±3%RH

Atmospheric pressure

Piezoresistive

300-1100hpa

0.1hpa

±0.5hpa（0-30℃）

Wind speed

Ultrasonic

0-60m/s

0.01m/s

（（0-30m/s）±0.3m/s or±3%

Wind direction

Ultrasonic

0-360°

0.1°

±2°

precipitation

Photology

0-200mm/h

0.2mm

Error±10%

PM2.5

Laser way

0-1000ug/m³

1ug/m³

±10%(<500μg)

PM10

Laser way

0-1000ug/m³

1ug/m³

±10%(<500μg)

UV

Electrochemical principle

0-15

1

1

Noise

Electret capacitance

30-130dB

0.1dB

±1.5dB

Supply

12-24VDC

Output

RS485(Modbus)

fixed form

Sleeve fixed, flange fixed

Power consumption

1.2W

Ingress Protection

IP65

Work Environment

Temperature: -40-70℃；Humidity: 5-90%RH

Add function

● data collector (net port, GPRS)

● Fixed brackets (1.5m, 3m) constitute a complete set of monitoring station

●B/S architecture software platform, mobile APP client software (android version only)

● Solar power system

Main material

ASA+engineering plastics

Mounting frame

1.5m, 3m Flange, 1.8m tripod

GPS

Device tracking and positioning
