Compact Outdoor Weather Station for Environmental and Agricultural Monitoring

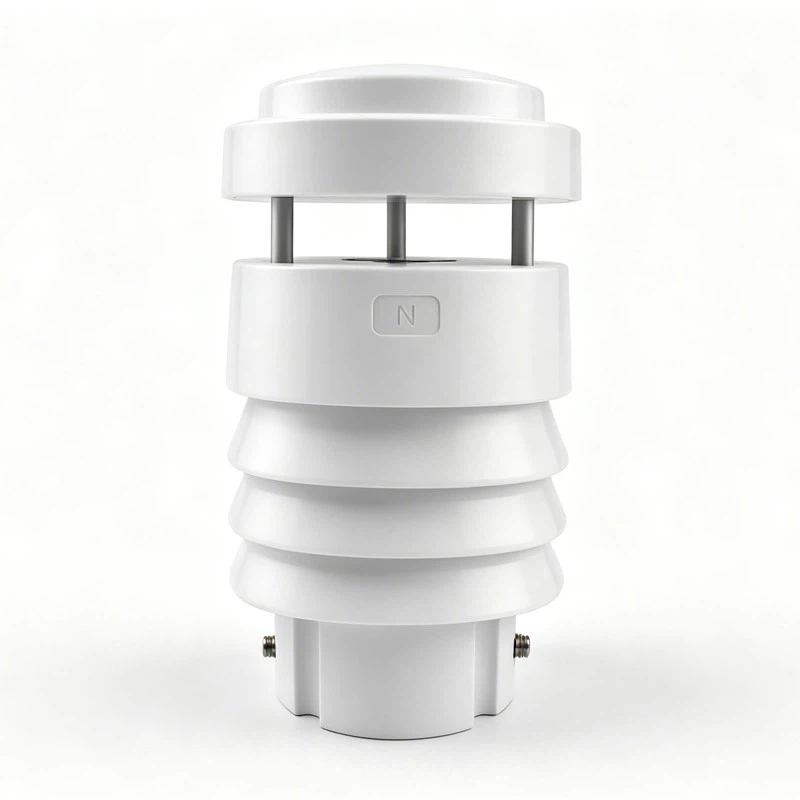

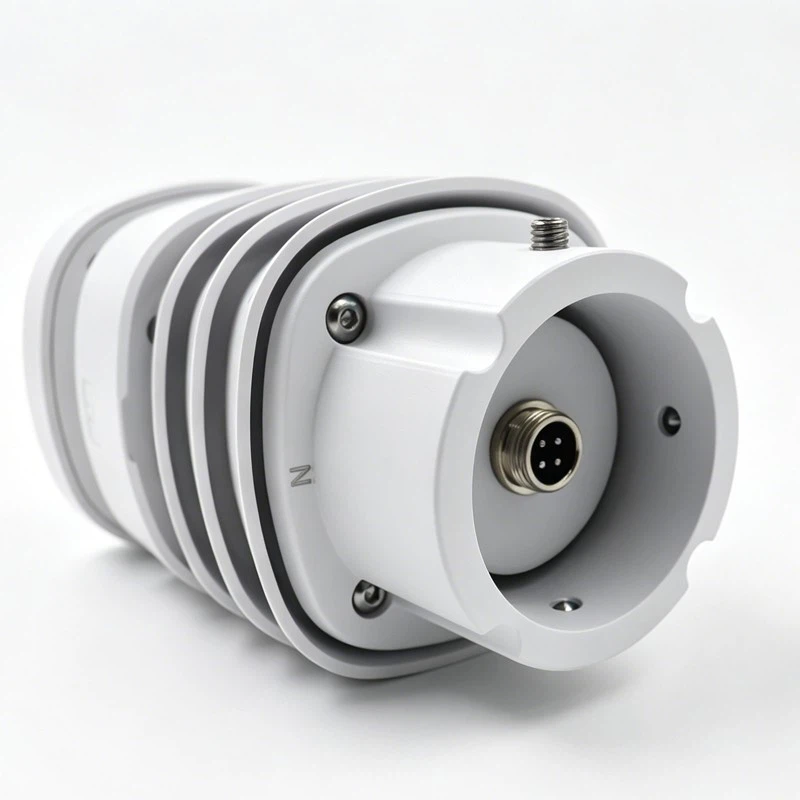

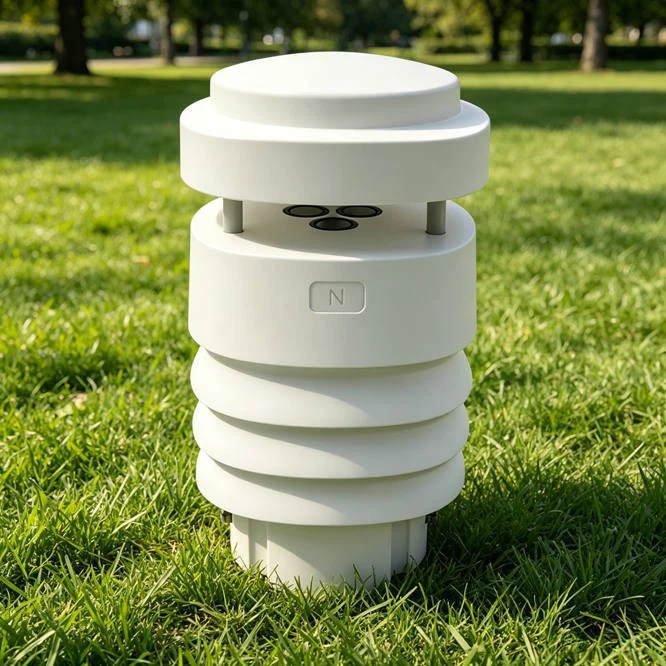

The XF805 5 in 1 Ultrasonic Weather Station is a compact 5 in 1 weather station designed for outdoor environmental monitoring, smart agriculture, industrial weather monitoring, and IoT weather monitoring systems.

The XF805 integrates:

Air temperature sensor

Relative humidity sensor

Wind speed sensor

Wind direction sensor

Atmospheric pressure sensor

into one compact ultrasonic weather station.

Using ultrasonic wind measurement technology, the XF805 compact weather station provides stable and accurate meteorological monitoring without any moving parts. Compared with traditional mechanical weather stations, the XF805 offers faster response, lower maintenance requirements, and better long-term reliability.

Why Choose XF805 Compact Weather Station?

The XF805 ultrasonic weather station is specially designed for continuous outdoor weather monitoring applications.

Key advantages include:

5 in 1 compact weather station

Ultrasonic wind speed and direction monitoring

Integrated atmospheric pressure monitoring

Maintenance-free ultrasonic weather station

Compact all in one weather sensor

RS485 Modbus RTU communication

Outdoor IP65 weatherproof protection

Low power consumption

Easy installation and integration

Stable long-term outdoor monitoring

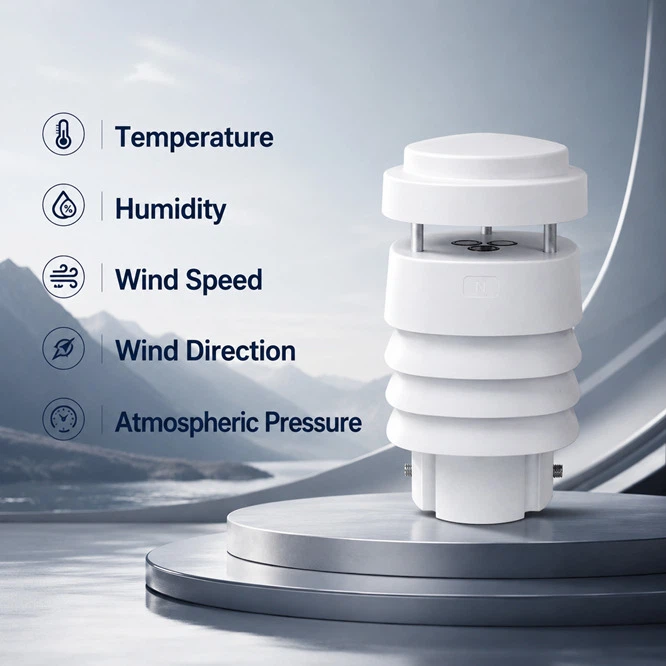

5 in 1 Integrated Weather Monitoring

The XF805 all in one weather station combines multiple meteorological sensors into one compact outdoor weather monitoring device.

Integrated monitoring parameters include:

Air temperature

Relative humidity

Wind speed

Wind direction

Atmospheric pressure

The compact integrated structure reduces installation complexity while improving overall system reliability.

Ultrasonic Wind Measurement Technology

The XF805 ultrasonic weather station uses ultrasonic technology to measure wind speed and wind direction.

Unlike traditional cup anemometers and mechanical wind vanes, the XF805 ultrasonic wind sensor has:

No rotating parts

No mechanical wear

Faster response speed

Lower maintenance costs

Better durability in harsh environments

This makes the XF805 suitable for industrial weather monitoring and long-term outdoor deployment.

XF805 Weather Station Applications

Smart Agriculture Weather Monitoring

The XF805 weather station is widely used in smart agriculture projects for monitoring temperature, humidity, wind, and atmospheric pressure conditions.

Environmental Monitoring Systems

The compact outdoor weather station is suitable for environmental monitoring stations and outdoor climate observation projects.

Industrial Weather Monitoring

The XF805 industrial weather station can be deployed in factories, industrial parks, construction sites, and outdoor infrastructure projects.

Smart City Weather Monitoring

The RS485 weather station supports smart city environmental monitoring and urban climate monitoring systems.

IoT Weather Monitoring Systems

The XF805 compact weather sensor can be integrated into IoT weather monitoring platforms and remote environmental monitoring systems.

XF805 Technical Specifications

Monitoring parameters	Measurement range		Accuracy	Resolution	Sampling frequency
Air temperature	-40-85℃		±0.3℃ (@25℃)	0.01℃	1 Hz
Air humidity	0-100%RH		±3%RH (10%~80%RH, no condensation)	0.01%RH	1 Hz
Wind speed	0-60 m/s		±(0.5+0.05V) m/s V represents the wind tunnel calibration wind speed (m/s).	0.01 m/s	4 Hz
Wind direction	0-359.9°		±5° (@10 m/s)	0.1°	4 Hz
Atmospheric pressure	500-1100 hPa		±0.5 hPa (@25℃, 950~1100 hPa)	0.1 hPa	1 Hz
Overall parameters		Specification
Operating temperature		-20℃ ~ 60℃
Output interface		RS485, Modbus RTU
Maximum output frequency		Passive mode: 1 time/second; Active mode: 1 time/minute
Power supply voltage		DC 9 ~ 24V (DC 12V recommended)
Protection level		IP65
Fixing method		Sleeve type (standard); flange type, bent plate type (optional)
Standard cable		3 meters (10 meters optional)

Outdoor IP65 Weather Sensor

The XF805 outdoor weather station is designed for long-term outdoor operation.

The IP65 weatherproof enclosure protects the device from:

Rain

Dust

Humidity

Strong sunlight

Outdoor environmental exposure

Its maintenance-free ultrasonic design helps reduce operational and maintenance costs.

Easy Installation

The XF805 compact weather station supports:

Pole mounting

Flange mounting

Installation recommendations:

Install in open outdoor locations

Avoid nearby obstacles

Keep away from heat sources

Ensure correct north orientation

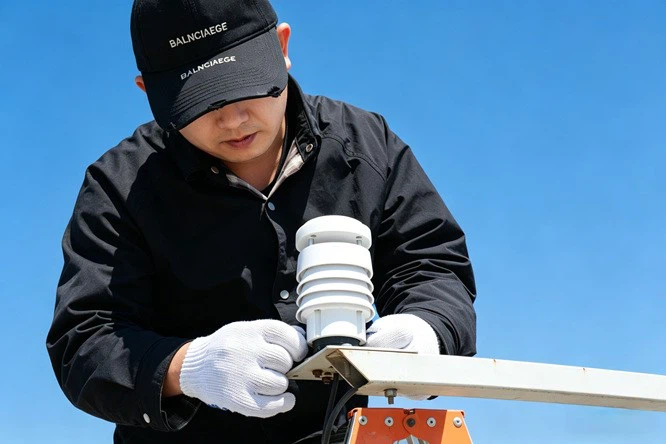

Installation of meteorological station 1

FAQ

What is a 5 in 1 weather station?

A 5 in 1 weather station integrates five meteorological parameters into one compact device, including temperature, humidity, wind speed, wind direction, and atmospheric pressure.

What is the advantage of an ultrasonic weather station?

Ultrasonic weather stations use ultrasonic technology instead of mechanical rotating parts, providing faster response, lower maintenance, and better long-term reliability.
