Product Introduction

The XF808 Compact Weather Station is a highly integrated ultrasonic weather monitoring sensor designed for professional outdoor environmental monitoring applications.

This compact all-in-one weather station integrates eight meteorological parameters, including air temperature, relative humidity, wind speed, wind direction, atmospheric pressure, rainfall, illumination, and solar radiation, into a single compact structure.

Featuring ultrasonic wind measurement technology and radar rainfall monitoring technology, the XF808 provides accurate and stable real-time weather data without any moving parts, significantly reducing maintenance requirements during long-term outdoor operation.

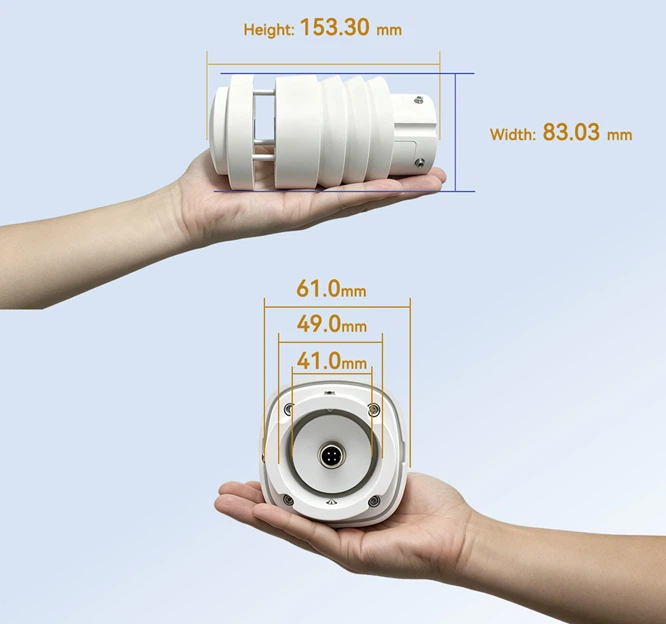

With a compact height of only 153.3 mm, the XF808 is specially designed for applications where installation space is limited while high-performance meteorological monitoring is still required. The device supports continuous 24/7 unattended monitoring and can be widely used in smart agriculture, smart cities, photovoltaic power stations, transportation, environmental monitoring, and industrial meteorological systems.

Features

8-in-1 integrated weather monitoring solution

Compact structure with only 153.3 mm height

Ultrasonic wind speed and wind direction measurement

Radar rainfall monitoring technology

Integrated illumination and solar radiation monitoring

No moving mechanical parts, maintenance-free operation

High accuracy and excellent long-term stability

Suitable for continuous outdoor monitoring

Low power consumption

Easy installation and system integration

RS485 / Modbus communication optional

Suitable for smart agriculture, photovoltaic systems, and environmental monitoring

Monitoring Parameters

Monitoring parameters	Measurement range		Accuracy	Resolution	Sampling frequency
Air temperature	-40-85℃		±0.3℃ (@25℃)	0.01℃	1 Hz
Air humidity	0-100%RH		±3%RH (10%~80%RH, no condensation)	0.01%RH	1 Hz
Wind speed	0-60 m/s		±(0.5+0.05V) m/s V represents the wind tunnel calibration wind speed (m/s).	0.01 m/s	4 Hz
Wind direction	0-359.9°		±5° (@10 m/s)	0.1°	4 Hz
Atmospheric pressure	500-1100 hPa		±0.5 hPa (@25℃, 950~1100 hPa)	0.1 hPa	1 Hz
Rainfall	0-200 mm/h		±10% (wind speed ≤ 5 m/s)	0.01 mm	1 Hz
Illumination	0-100 Klux		±3% FS	10 Lux	1 Hz
Total radiation	0-1500 W/㎡		±5%	1 W/㎡	1 Hz
Overall parameters		Specification
Operating temperature		-20℃ ~ 60℃
Output interface		RS485, Modbus RTU
Maximum output frequency		Passive mode: 1 time/second; Active mode: 1 time/minute
Power supply voltage		DC 9 ~ 24V (DC 12V recommended)
Protection level		IP65
Fixing method		Sleeve type (standard); flange type, bent plate type (optional)
Standard cable		3 meters (10 meters optional)

Product Advantages

Compact Integrated Design

Unlike traditional weather monitoring systems that require multiple independent sensors, the XF808 integrates eight meteorological parameters into one compact device, greatly simplifying installation and reducing deployment costs.

Its miniature structure allows the device to be installed in locations with limited mounting space while still maintaining professional-grade monitoring performance.

Ultrasonic + Radar Technology

The XF808 adopts ultrasonic technology for wind measurement and radar technology for rainfall detection.

Compared with traditional mechanical weather sensors, the device contains no rotating parts, effectively avoiding mechanical wear and significantly improving long-term operational reliability.

This maintenance-free design makes the XF808 especially suitable for unattended outdoor monitoring environments.

Designed for Professional Outdoor Applications

The XF808 is suitable for various professional meteorological monitoring scenarios, including:

Smart Agriculture

Smart City Monitoring

Photovoltaic Power Stations

Road Weather Monitoring

Environmental Monitoring

Industrial Weather Monitoring

Coastal Monitoring

Wind Energy Applications

Application Scenarios

The XF808 Compact Weather Station can be widely deployed in:

Agricultural weather monitoring systems

Solar photovoltaic environmental monitoring

Urban environmental monitoring networks

Highway meteorological monitoring

Marine and coastal monitoring

Industrial IoT systems

Unattended remote weather stations

Why Choose XF808?

The XF808 combines compact size, high integration, and professional-grade monitoring performance into a single device.

Compared with conventional multi-sensor weather stations, the XF808 offers:

Easier installation

Lower maintenance cost

Reduced wiring complexity

Better long-term reliability

More compact deployment

It is an ideal solution for customers seeking compact, intelligent, and reliable meteorological monitoring equipment.

FAQ

What parameters can XF808 monitor?

XF808 can monitor wind speed, wind direction, temperature, humidity, atmospheric pressure, rainfall, illumination, and solar radiation.

Does XF808 require maintenance?

No. The XF808 adopts ultrasonic and radar technologies without moving mechanical parts, greatly reducing maintenance requirements.

Is XF808 suitable for long-term outdoor use?

Yes. The device is designed for continuous 24/7 outdoor environmental monitoring applications.

What communication interfaces are supported?

RS485 and Modbus communication protocols are available for system integration.

Where can XF808 be used?

XF808 can be used in smart agriculture, photovoltaic systems, environmental monitoring, transportation, smart cities, and industrial meteorological projects.
