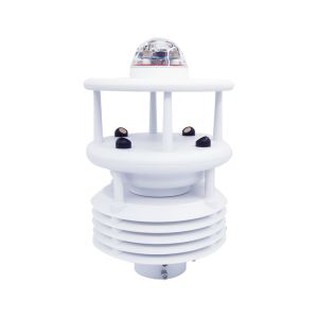

HCD6817B Compact Weather Station

（T+RH+P+WD+WDIR+PM2.5/10+Noise）

image003(001)

OVERVIE

HCD6817B is designed and produced by Handan yunnong intelligent agricultural technology co., LTD. It innovatively realizes the meteorological standard parameters （T、RH、P、WD、WDIR、PM2.5/10、Noise）through a highly integrated structure, which can realize the 24-hour continuous online monitoring of outdoor meteorological parameters, and output the parameters to the user at one time through the digital communication interface.

APPLICATION

HCD6817B is used for the construction site construction, city roads, residential environment of makings, meteorology, the real time data such as video monitoring system.It is based on the environmental protection department of the GB 3095-2012 and GB 3096-2008 and can be real-time monitoring and control effectively for site area dust through wired or wireless way

FEATURES

1、Standard configuration monitoring T、RH、P、WD、WDIR、PM2.5/10、Noise, RS485（MODBUS ）；

2、High precision, reliable performance, suitable for outdoor weather harsh environment;

3、Parameter collection, optional wireless data collector, automatic data upload network platform, mobile phone client real-time data view；

4、Real-time monitoring of meteorological environmental data, low cost, suitable for grid distribution；

5、Small size, modular design, flexible layout；

6、Data acquisition adopts 32-bit high-speed processing chip, stable and anti-interference.

TECHNICAL SPECIFICATION

Measture item	Principle	Range	Resolution	Accuracy
Atmospheric temperature	MEMS	-40-60℃	0.1℃	±0.3℃ (@25℃，typical case）
Atmospheric humidity	MEMS	0-100%RH	0.1%RH	±3%RH (0-90%RH）
Atmospheric pressure	MEMS	300-1100hpa	0.1hpa	±0.5hpa（0-30℃）
Wind speed	Ultrasonic	0-60m/s	0.01m/s	（0-30m/s）±0.3m/s or ±3%（30-60m/s）±5%
Wind direction	Ultrasonic	0-360°	0.1°	±2°
PM2.5	Laser way	0-1000ug/m³	1ug/m³	±10%(Measurements)
PM10	Laser way	0-1000ug/m³	1ug/m³	±10%(Measurements)
Noise	MEMS	30-130dB	0.1dB	10%

Supply	12-24VDC, solar power
Output	RS485(Modbus)
fixed form	Sleeve fixed； Flange adapter fixed
Power consumption	＜1W@12V
Ingress Protection	IP66
Main material	ASA+engineering plastics
Mounting frame	1.5m, 3m Flange, 1.8m tripod
GPS	Device tracking and positioning
Data Release	PC、Telephone APP、LED、LCD TV display, etc
