HCD6815 Automatic Weather Station Smart Greenhouse Five-in-one Smart Weather Sensor
HCD6815 Automatic Weather Station Smart Greenhouse Five-in-one Smart Weather Sensor
automatic weather station Introduction
HCD6815 Five-in-one automatic weather station is an instrument developed by our company to monitor meteorological parameters in many fields. This automatic weather station monitors five meteorological parameters (ambient temperature, relative humidity, wind speed, wind direction, and atmospheric pressure) through a integrated structure, enabling 24-hour continuous monitoring of outdoor meteorological parameters.
The five parameters automatic weather station are transmitted through a digital communication interface and the device would output data to the user. In addition, the product can be expanded to add other meteorological and environmental parameters (rainfall, solar radiation, six AQI parameters: CO, NO2, SO2, O3, PM2.5, PM10), etc.
Automatic weather station size:
Automatic weather station data:
|
Measure item |
Principle |
Range |
Resolution |
Accuracy |
|
Atmospheric temperature |
MEMS |
-40-60℃ |
0.1℃ |
±0.3℃ (@25℃,typical case) |
|
Atmospheric humidity |
MEMS |
0-100%RH |
0.1%RH |
±3%RH (0-90%RH) |
|
Atmospheric pressure |
MEMS |
300-1100hpa |
0.1hpa |
±0.5hpa(0-30℃) |
|
Wind speed |
Ultrasonic |
0-60m/s |
0.01m/s |
(0-30m/s)±0.3m/s或±3%(30-60m/s)±5% |
|
Wind direction |
Ultrasonic |
0-360° |
0.1° |
±2° |
|
Supply |
12-24VDC, solar power |
|||
|
Output |
RS485(Modbus) |
|||
|
Fixed form |
A) Sleeve fixed; B)Flange adapter fixed |
|||
|
Power consumption |
<200mA |
|||
|
Ingress Protection |
IP66 |
|||
|
Main material |
ASA+engineering plastics |
|||
|
Mounting frame |
1.5m, 3m Flange, 1.8m tripod |
|||
|
GPS |
Device tracking and positioning |
|||
|
Data Release |
PC,Telephone APP,LED,LCD TV display, etc |
|||
1,Arrows to point north
2,Ultrasonic probe
3,Control circuits
4.Thermometer shelter (temperature, humidity, air pressure monitoring position)
5,Bottom fixed with flange
※This product can be equipped with electronic compass, GPRS(built-in)/GPS (optional)
Automatic weather station material:
Automatic weather station protection:
Automatic weather station features:
Automatic weather station application:

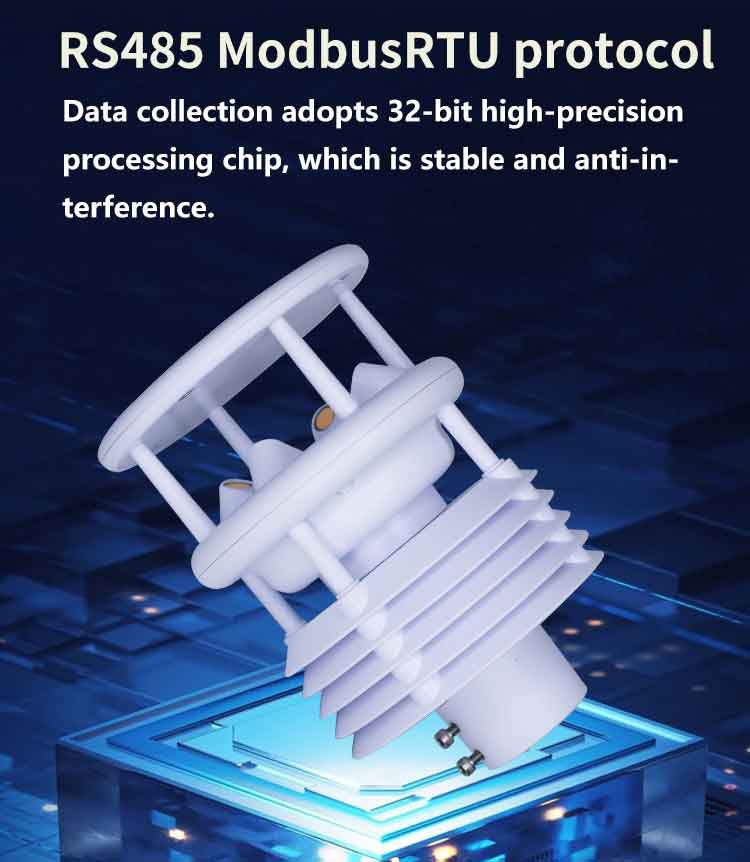

Automatic weather station communication protocols:
FAQ
Q: Are you trading company or manufacture of automatic weather station ?
A: We are manufacture of automatic weather station more then 10 years,we have rich experience.
Q: Is it ok to print my logo on the automatic weather station ?
A: Yes,we support OEM/ODM service on automatic weather station .
Q: What is your delivery time of the automatic weather station ?
A: It is in 6-8 working days since the payment confirmed . If quantity more than 100pcs /order, it will need extra 3-5 working days .
Q: How about the automatic weather station warranty ?
A: The automatic weather station warranty period is 12 months from the delivery date (except for the product problems caused by not operating in accordance with corresponding technical requirements or other artificial behavior).
After-sales commitment: Users can consult technical issues by phone and get clear solutions. If automatic weather station is a quality problem of the product itself, it can be returned to the factory for repair or replacement.
Q: Do you have certifications of the automatic weather station?
A: Yes,we have ISO9001 ,CE,ROASH etc.
Q: Is there any other automatic weather station in the same series with more parameters?
A: Yes, we have automatic weather station ,the name is HCD6816,HCD6816Z,HCD6818,HCD6819,HCD6820 .
