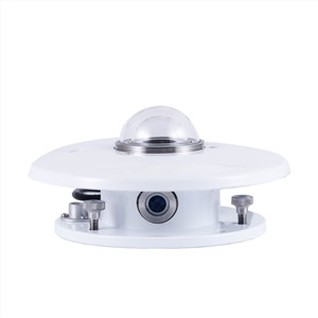

RY-CGH PAR (Photosynthetically Active Radiation) Sensor Multiple Outputs

The RY-CGH photosynthetically active radiation sensor is mainly used to measure the photosynthetically active radiation of natural light in the wavelength range of 400-700nm, and it is easy to use. It can be directly connected with a digital voltmeter or data collector, and can be used under all-weather conditions.

Send Inquiry

Technical Data

Spectral range	400-700nm
Sensitivity	7-50μv / μ • mol • m2 • s
Response time	<1s (99%)
Temperature related	maximum 0.05% / ℃
Cosine correction	up to 80℃ incident angle
Internal resistance	<2K
Working temperature	-40℃~65℃
Working humidity	<90%
Output	original output
Range	0-4000μ • mol • m2 • s
Farthest lead length	200m for current, 100m for RS485, 50m for voltage

Wiring Definition

RY-CGH	Red + White - (Millivolt output)
RY-CGH/S	Red + Black - Yellow MA output(4-20mA)
RY-CGH/485	Red + Black - Yellow A Blue B
