WIND DIRECTION SENSOR
RY-FS01
MANUAL
APPLICATION
This sensor is used to measure the wind direction in the outdoor environment, measure the 16 azimuth wind direction, and output in degrees. It can output 485 signal according to demand.

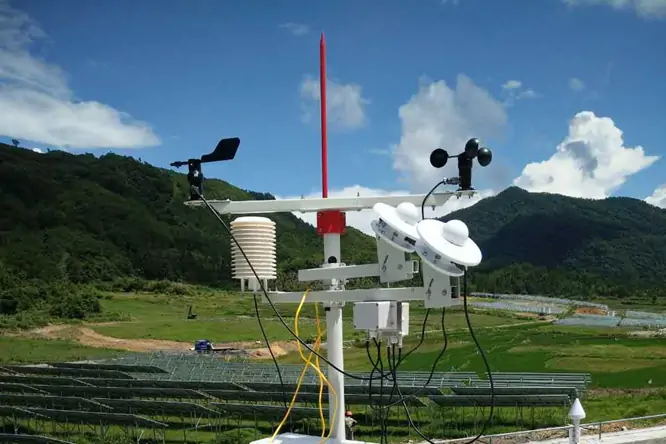

It is widely used for wind speed measurement in greenhouses, environmental protection, weather stations, ships, docks, and aquaculture.
FEATURES
.Small size, easy to carry, easy to install
.High accuracy, wide range and good stability
.Reasonable structural design and good appearance quality
.Good linearity of data information, long signal transmission distance, strong anti-interference ability
TECHNICAL SPECIFICATION
Model | RY-FX01/485 |
16 direction output 485 | |
Starting wind speed | ≤0.3m/s |
Measuring range | 0～360° |
Output signal | RS485 |
Working Voltage | DC12V |
Resolution | 16 Direction |
Operating temperature | -20~80℃ |
Environment humidity | ≤95% |
Transmission distance | >300m |
Size and weight | 1. Weathercock height：160mm |
SIZE
16 WIND DIRECTION WIRING
Correspondence between output degree and direction：
North | 0 |
North to East | 22.5 |
Northeast | 45 |
East to North | 67.5 |
Ease | 90 |
East to South | 112.5 |
Southeast | 135 |
South to east | 157.5 |
South | 180 |
South to west | 202.5 |
Southwest | 225 |
West to south | 247.5 |
West | 270 |
West to north | 292.5 |
Northwest | 315 |
North to west | 272.5 |
WIRING METHOD
Red：+ Black：- Yellow：A Blue：B
