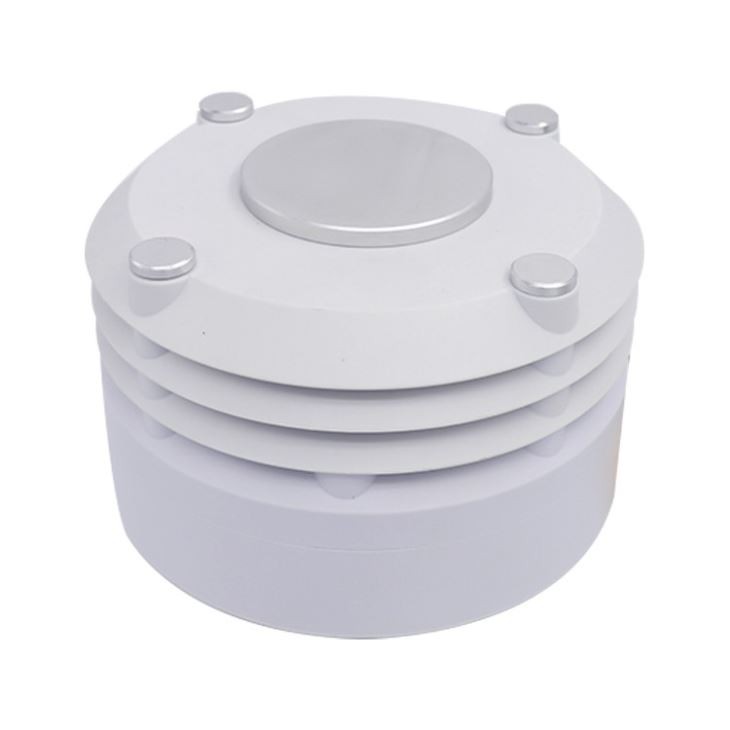

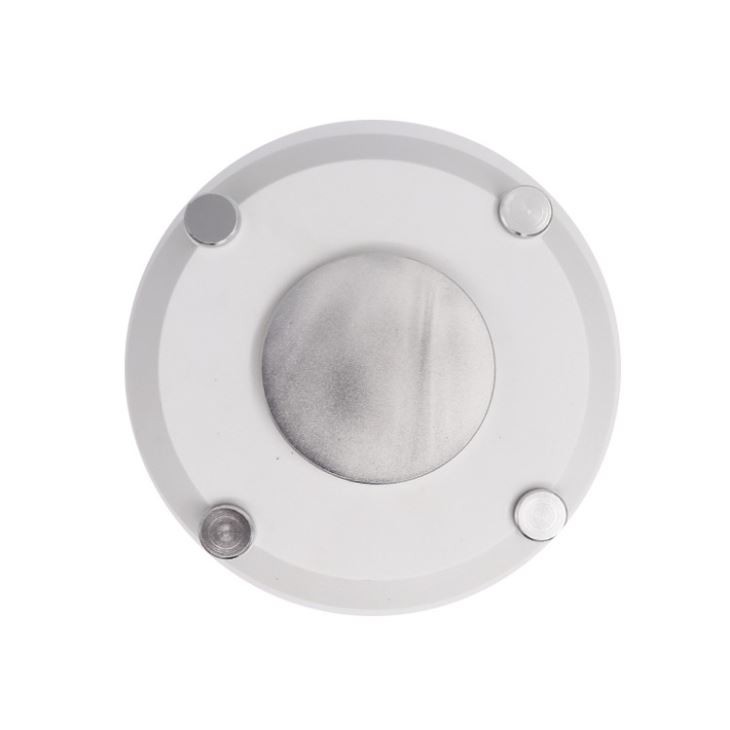

AIR QUALITY SENSOR(OUTDOOR TYPE)

RY-CPM2510

OVERVIEW

RY-CPM2510 air quality sensor (outdoor type) is an instrument for outdoor parameter monitoring of atmospheric outdoor PM2.5 and PM10 for the current smart city and smart environmental monitoring field. The product has a beautiful appearance, high integration and powerful functionscan and it can expand four kinds of pollution gases (CO, NO₂, SO₂, O₃) and H₂S, volatile organic pollutants or other meteorological sensors (temperature, humidity, wind speed, wind direction, atmospheric pressure, rainfall or Sun radiation) and so on.

APPLICATION

RY-CPM2510 air quality sensor (outdoor type) can be applied to urban grid environment monitoring and control, smart street lights, scenic environment monitoring, factory or mine, construction site (site dust monitoring), urban road, highway, public places Wait for air quality monitoring.

FEATURES

1. Standard monitoring of two parameters of PM2.5 and PM10, RS485 communication, MODBUS communication protocol;

2. Low cost and reliable performance, suitable for outdoor and industrial environment fields;

3. Realize various parameter collection, optional wireless data collector, automatic data upload network platform, mobile client to view data in real time;

4. Real-time monitoring of atmospheric environmental data, low cost, suitable for grid layout;

5. Small size, modular design, flexible layout;

6. Optional GPS positioning to realize equipment tracking function;

7. The data acquisition adopts a 32-bit high-speed processing chip, which is stable and anti-interference.

TECHNICAL SPECIFICATION

Measture item	Principle	Range	Resolution	Accuracy
Atmospheric temperature	MEMS	-40-60℃	0.1℃	±0.3℃(25℃)
Atmospheric humidity	MEMS	0-100%RH	0.1%	±3%RH
Atmospheric pressure	MEMS	300-1100hpa	0.1hpa	±0.5hpa(0-30℃)
PM2.5	Laser way	0-1000ug/m³	1ug/m³	±10%(Measurements)
PM10	Laser way	0-1000ug/m³	1ug/m³	±10%(Measurements)
CO	Electrochemical principle	0-12.5ppm	≤10ppb	±1.5%F.S
SO₂	Electrochemical principle	0-2000ppb	≤10ppb	±1.5%F.S
NO₂	Electrochemical principle	0-2000ppb	≤10ppb	±1.5%F.S
O₃	Electrochemical principle	0-2000ppb	≤10ppb	±1.5%F.S
Wind speed	Ultrasonic	0-60m/s	0.01m/s	(0-30m/s)±0.3m/s or ±3%(30-60m/s)±5%
Wind direction	Ultrasonic	0-360°	0.1°	±2°
Solar radiation	Photology	0-2000w/m^-2	1w	±2.5%

Supply	12-24VDC
Output	RS485(Modbus)

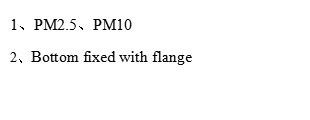

fixed form	Sleeve fixed, flange fixed
Power consumption	<1w@12V
Ingress Protection	IP65
Work Environment	Temperature: -40-70℃;Humidity: 5-90%RH
Add function	● Data collector (net port, GPRS) ● Fixed brackets (1.5m, 3m) constitute a complete set of monitoring station ● B/S architecture software platform, mobile APP client software (android version only) ● Solar power system
Main material	ASA+engineering plastics
Mounting frame	1.5m, 3m Flange, 1.8m tripod
GPS	Device tracking and positioning
Data Release	PC,Telephone APP,LED,LCD TV display, etc
Wiring method	Red: Power+ Black: Power- Yellow: RS485+ Blue: RS485-

FAQ

1.Q: Can it avoid misdetection due to environmental conditions or pollution?

A: We conduct multiple tests in different environments, and the error value has little effect on the final test results.

2.Q: Will it be affected by the surrounding sensors?

A: If the sensor is close to high temperature, strong light, noise, radio waves, wind vibration, etc., it will be affected. Customers are requested to fully evaluate according to the situation to be used. Please note that it is installed in a position where the wind does not directly hit the sensor.
