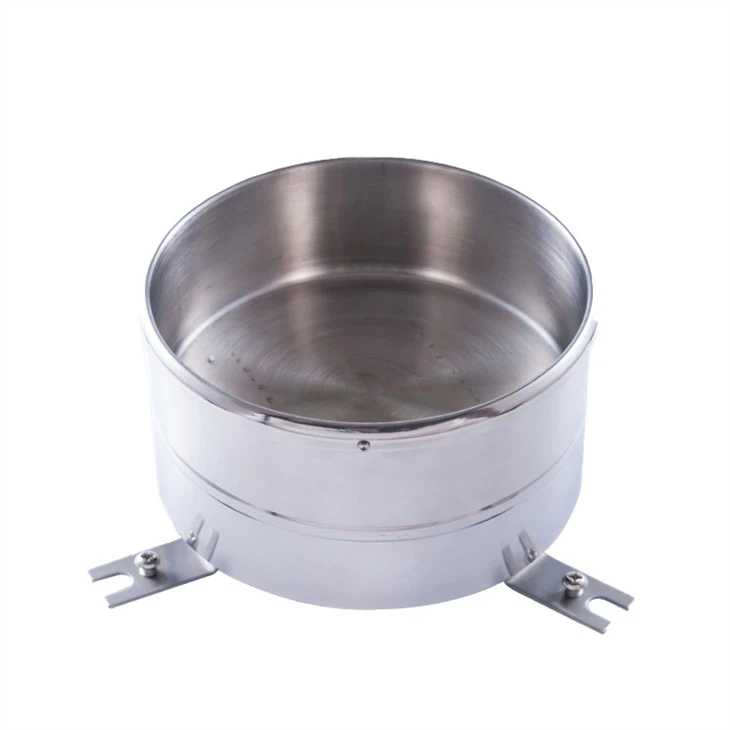

RY-CZF/485 EVAPORATION SENSOR

Details

RY-CZF evaporation sensor uses the high-precision weighing principle to measure the weight of the liquid in the evaporation dish, and then calculates the liquid level. Therefore, it can be used in a variety of environments, such as liquids or icing, which solves the disadvantages of using the ultrasonic principle to measure the liquid level (1. Inaccurate measurement when icing; 2. easy to damage the sensor without water 3. Low accuracy), can be used with automatic weather station or professional evaporation recorder, suitable for agriculture, forestry, meteorology, scientific research and other related departments.

Category

Weather Sensors

Share to

Send Inquiry

Description

Technical Parameters

APPLIACATION

Water surface evaporation sensor is an instrument for measuring liquid surface evaporation. It is suitable for meteorology, plant and seed cultivation units, agricultural and forestry research institutions and other departments.

FEATURES

▲High accuracy

▲Stable performance and good linearity

▲Easy installation and simple operation

▲Stainless steel, no rust, guarantee the service life of the sensor

▲Reasonable structural design and good quality and beautiful appearance

TECHNICAL SPECIFICATION

●Caliber: φ160mm

●Measuring range: 0-80mm

●Power supply: DC8-12V

●Ambient temperature: -30 ℃ -80 ℃

●Signal output: RS485
