Precisely align with the sun and automatically track changes in light all day long

SAUT fully automatic tracking system 1

Solution introduction

With the increasing demand for solar monitoring accuracy, the SAUT fully automatic dual-axis solar tracking system came into being. This is a highly integrated, intelligently controlled, all-weather solar automatic tracking platform that can achieve accurate positioning and tracking of various solar radiation sensors. It is widely used in meteorological observation, photovoltaic station monitoring, scientific research institutes and environmental radiation measurement projects.

The SAUT system uses GPS satellite positioning to synchronize time and position, eliminating internal clock errors; it uses high-sensitivity optical tracking technology and intelligent drive systems, and can continue to operate stably even in bad weather and uneven ground.

System highlights

Automatically track the sun's trajectory around the clock

GPS accurately locates time and geographic information

Supports a variety of solar radiation measurement sensors

Intelligently switch between active/passive tracking modes

Stable drive structure, easy installation and maintenance-free

SAUT fully automatic tracking system 2

Application compatibility

SAUT platform is compatible with a variety of measurement equipment, including but not limited to:

Solar direct radiation meter

Scattered radiometer (with sunshade arm)

Global radiometer

Atmospheric longwave radiometer

Solar total radiation observation instrument

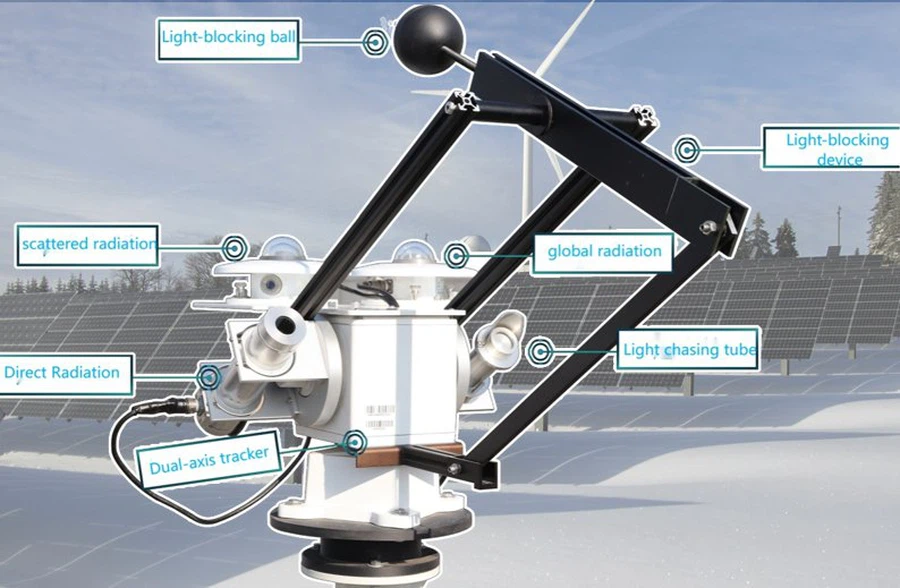

SAUT fully automatic tracking system 4

The platform design supports multi-point installation on the top and side to form a complete solar radiation monitoring station system.

Technical configuration

Module	Parameter description
Control mode	Photoelectric induction + program control dual-mode intelligent switching
Tracking angle	pitch axis 0-120°, azimuth axis 0-360°
Time positioning	GPS synchronizes time and position
Equipment load	bearing-≤5kg
Tracking accuracy	high-precision stable tracking, adapted to scientific research and power station monitoring needs
Environmental adaptation	all-weather protection design, suitable for polar, desert and other terrains
Installation platform	upper bracket (2 instruments) + side bracket (1 unit)
Other functions	built-in sunshade, automatic control of shading direction

Tracking principle description (simplified description)

SAUT uses two sets of vertical rotation axes to adjust the platform orientation in real time.

When the sunshine conditions are good, the system automatically captures the position of the sun spot with the help of the tracking tube; when it is cloudy or the light is insufficient in the early morning/dusk, it automatically switches to program control mode, calculates the sun position through the time angle model, and ensures all-weather tracking.

SAUT fully automatic tracking system 3

Application areas

Real-time tracking of light radiation in photovoltaic power plants

Installation and shading control of radiometers in meteorological stations

Solar energy assessment platform for environmental protection units

Long-term observation site for scientific research-level sunshine energy

Why choose SAUT?

Advantages	significance
No manual adjustment required	automatic correction of tracking angle, no intervention during full-day operation
Precise and stable	meet the accuracy requirements of scientific research and large-scale applications
Cost savings	avoid data errors caused by tracking deviations
Module integration	one system, compatible with multi-instrument installation and shading control
Extreme adaptation	suitable for a variety of geographical and climatic environments from the equator to the poles
