Advantages of JCY-HJWS-485 Temperature and Humidity Monitor
●Swiss original high-precision temperature and humidity sensor as sensitive element
●Excellent sampling algorithm, with high sensitivity
●Fast response, high precision Good stability
●High definition OLED display
●Beautiful, compact and easy to use and install
●Standard Modbus protocol
●Real-time data reading
●Transmitter address and communication baud rate can be changed
●Remote soft reset
●Especially suitable for OEM matching
|
Technical Data |
||
|
Temperature |
Humidity |
|
|
Resolution |
0.1℃ |
0.1%RH |
|
accuracy |
≤±0.2℃ (25℃) |
≤±2%RH (≤80%RH) |
|
Effective measurement range |
-40.0～+80.0℃ |
100% |
|
Storage conditions |
10～60℃ |
20%～90%RH |
|
communication protocol |
Standard MODBUS protocol |
|
|
Display specifications |
0.96" OLED Blue 128x64 Resolution |
|
|
Probe specifications |
Φ16x30mm long (the probe can be changed to an external wall-mounted type, and the length of the probe cable can be 1-10 meters) |
|
|
Communication cable length |
4-wire, standard wiring length 2 meters |
|
|
Power supply and power consumption |
External DC7～15V (DC12V is recommended), which can be increased to 24V as needed, power consumption ≤0.2W |
|
|
Monitor working temperature and humidity |
-20～+60℃ |
|
|
Installation method |
Indoors, 2 screws with expansion pipes (Ф4x30mm) are vertically fixed on the wall or hanged on the cross arm by purchasing a hanging plate |
|

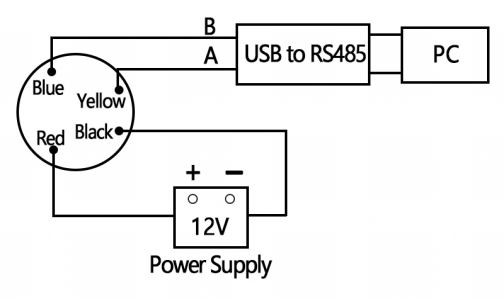

Outgoing wire definition:
Red: DC power supply positive (7～15V) , Black: DC power supply negative (power ground) Yellow: 485+ , Blue: 485-
