Product Parameter
|
Parameters |
Measuring Range |
Accuracy |
Resolution |
Sampling Frequency |
|
Ambient Temperature |
-40-85℃ |
±0.3℃@25℃ |
0.01℃ |
1HZ |
|
Relative Humidity |
0-100%RH |
±3%RH (10%-80%RH, No Condensation) |
0.01%RH |
1HZ |
|
Wind Speed |
0-60m/s |
±(0.3+0.03V)m/s;V≤30m/s ±(0.3+0.05V)m/s; V≥30m/s (V stands for standard wind speed in a wind tunnel) |
0.01m/s |
4HZ |
|
Wind Direction |
0-359.9° |
±3° (when Wind Speed ＜10m/s) |
0.1° |
4HZ |
|
Atmospheric Pressure |
500-1100hPa |
±0.5hPa (25℃,950-1100hPa) |
0.1hPa |
1HZ |
|
Operating Temperature |
-40℃-80℃ |
|||
Applications
Meteorological monitoring
Micro-environment monitoring
Grid-based environmental monitoring
Agricultural meteorological monitoring
Transportation meteorological monitoring
Photovoltaic (PV) environmental monitoring
Wind power meteorological monitoring
Product Features
Compact size
All-in-one design
High level of integration
Modular design with no moving parts
Easy installation
One-year warranty
Protective housing with specialized heat-insulating treatment
Supports extended parameter measurement
Free testing software
Your private weather station will pick up data of temperature, humidity, wind direction and speed, atmospheric pressure, and report it to you through the app or the website.
All-in-1 Weather Station: Temperature, humidity, wind direction/speed, atmospheric pressure,.
Near-Zero Maintenance: All-in-1 weather station with no moving parts.
Dual-Power Supply: Solar power autonomy & Backup battery
Get Live Data Instantly: View live data on app
Light, Compact Yet Robust: Install it outdoors and let it do its weather station magic.
Easy integration Third Party: With its unique data exchange protocol, it can be integrated easily with third party systems.
Long Transmission Range: Data can be picked up and received throungh hub GW2000 in 150 meters.
If you are interested in our products, please click here to go to the homepage and to contact us.

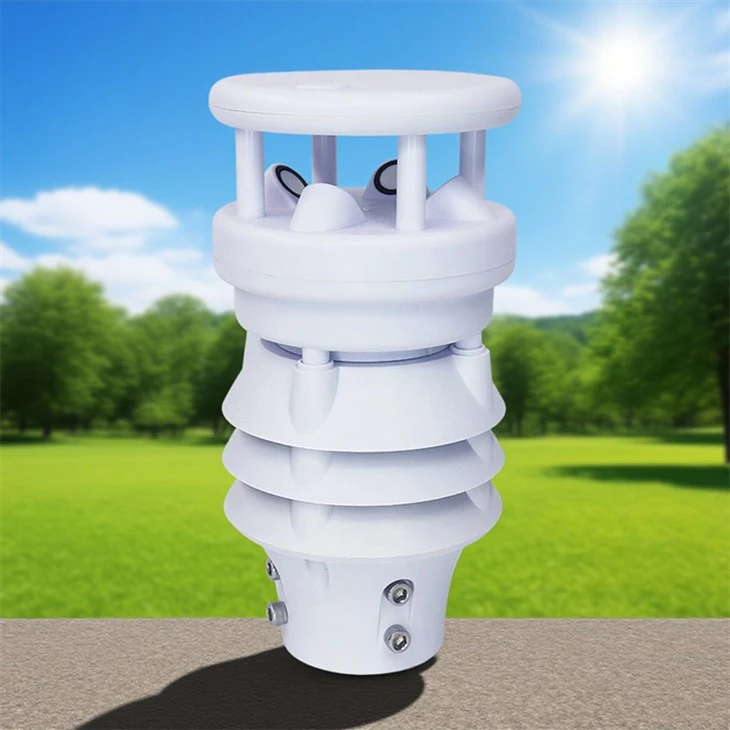

XF805 compact weather station
A compact 5-parameter weather station capable of simultaneously monitoring temperature, humidity, wind speed, wind direction, and atmospheric pressure.
HCD6815 weather station
A five-parameter weather station with expandability, capable of simultaneously monitoring temperature, humidity, wind speed, wind direction, and atmospheric pressure.
XF808 mini weather station
An ultra-compact 8-parameter weather station capable of simultaneously monitoring temperature, humidity, wind speed, wind direction, atmospheric pressure, rainfall, illuminance, and solar radiation.
